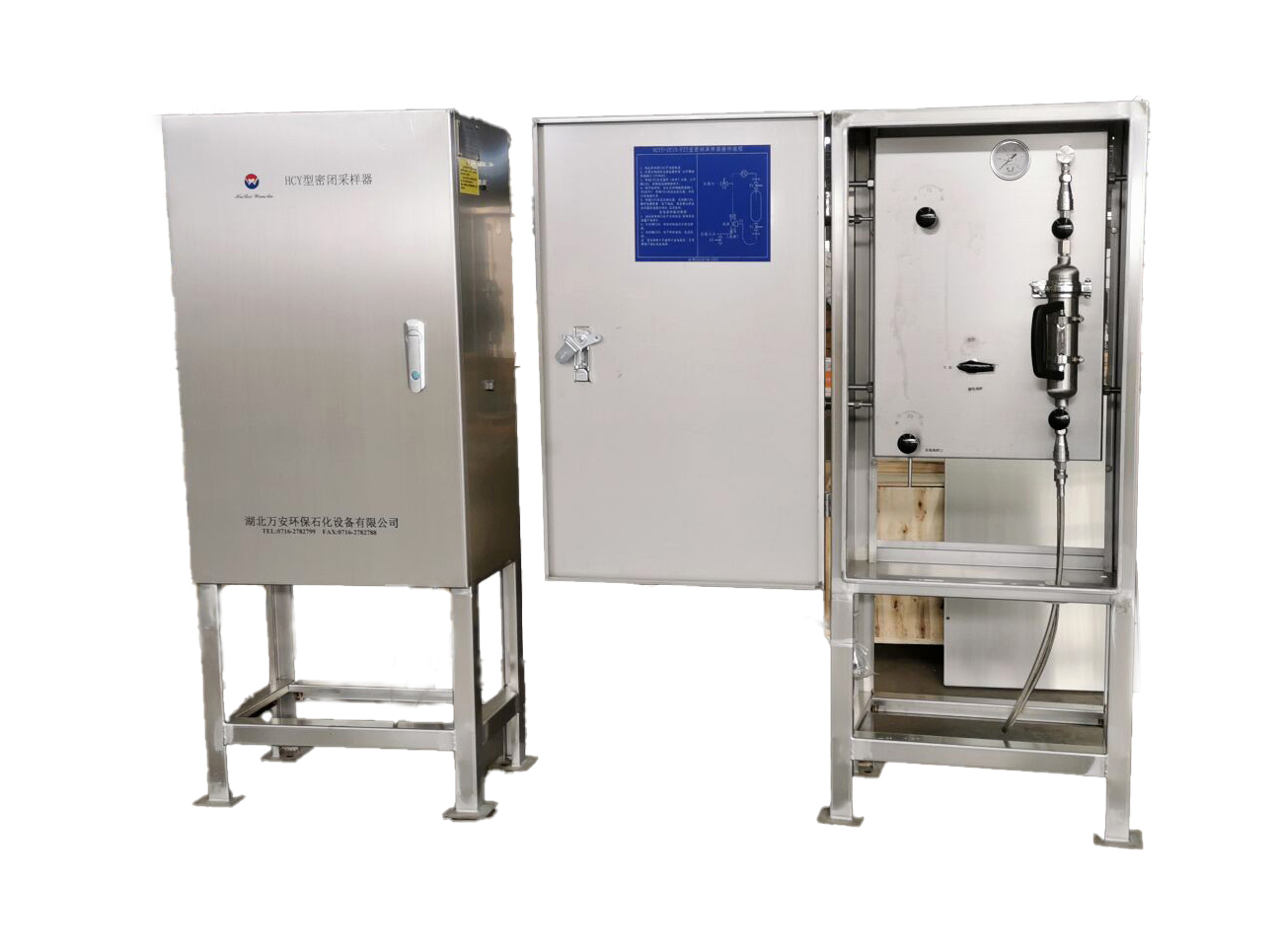

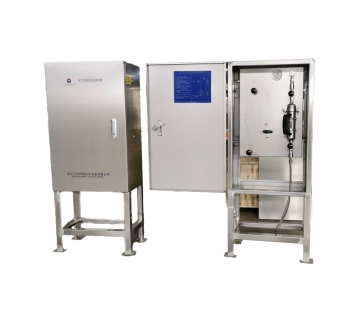

The high temperature and high pressure closed sampling system is a device specially used for sample collection under high temperature and high pressure environment. This kind of system is widely used in petrochemical, natural gas, chemical and other fields, especially when dealing with toxic, harmful, flammable, explosive and other media, its safety and reliability is particularly important.
Applicable medium: high temperature and high pressure hydrocarbon sampling
Note: High pressure type refers to medium in gaseous state under normal pressure
High temperature pressure sampling System composition
The high temperature and high pressure closed sampling system is usually composed of sampling part, sealing part, control part and auxiliary equipment.Liquid sampler Closed loop sampling system
Sampling part: includes sampling head, sampling pipe, sampling bottle and other components for the collection and storage of samples. The sampling head is usually made of high temperature and high pressure resistant material to ensure that it is not damaged by high temperature and high pressure during the sampling process.
Closed part: includes a closed valve, a closed membrane and a closed chamber and other components for maintaining the isolation of the sampler from the external environment. The sealing performance of these components is essential to prevent contamination or leakage of the sample during sampling.
Control part: used to control the parameters of the sampling process, such as temperature, pressure, flow, etc. The control section usually has an automated function that reduces manual intervention and human error and improves sampling efficiency and accuracy.
Auxiliary equipment, such as cooling systems, heating systems, pressure controls, etc. to meet the needs of specific sampling conditions.

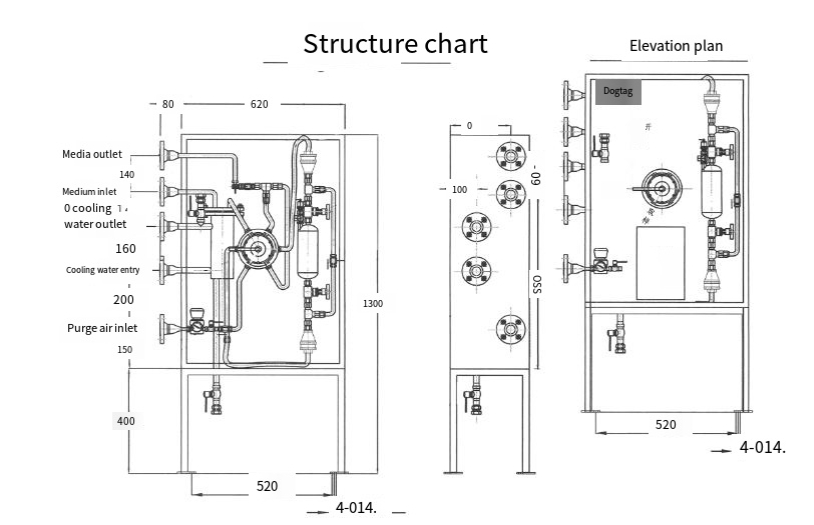

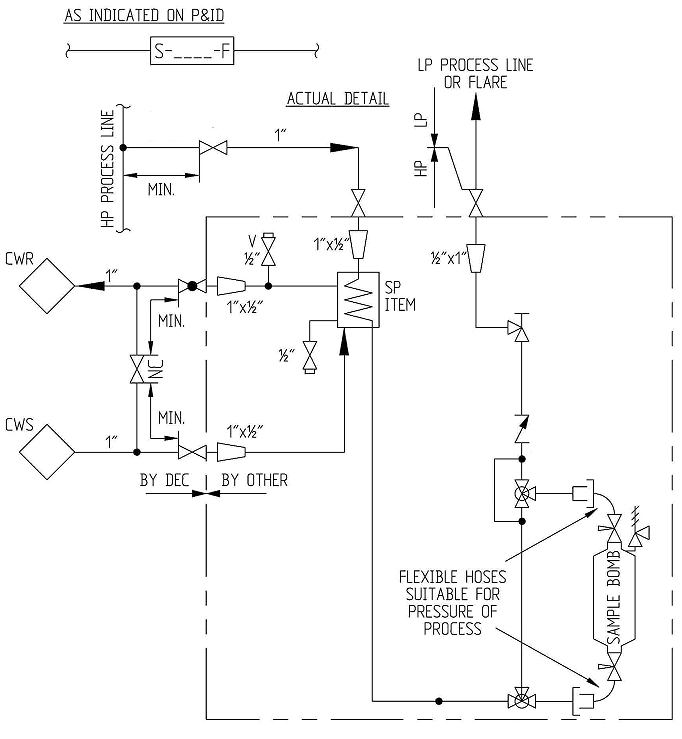

Structure drawing and sampling flow chart：
A sampling system usually refers to a system that can intermittently (or discretely) sample a continuous signal and convert it into a discrete signal (such as a pulse train or a digital sequence) for subsequent processing or storage.Custom sampling system At the heart of this process is the sampling technique, which obtains a series of discrete signal values by measuring a continuous signal at a specific point in time (sampling point).
